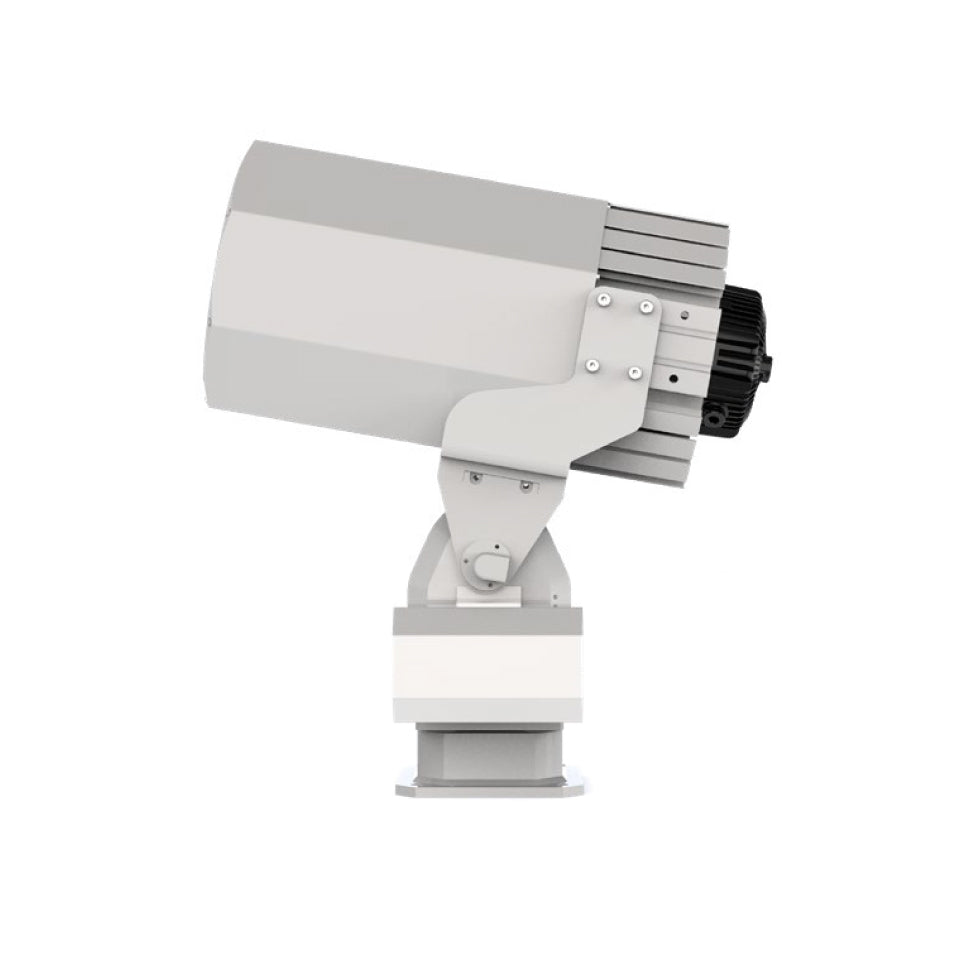

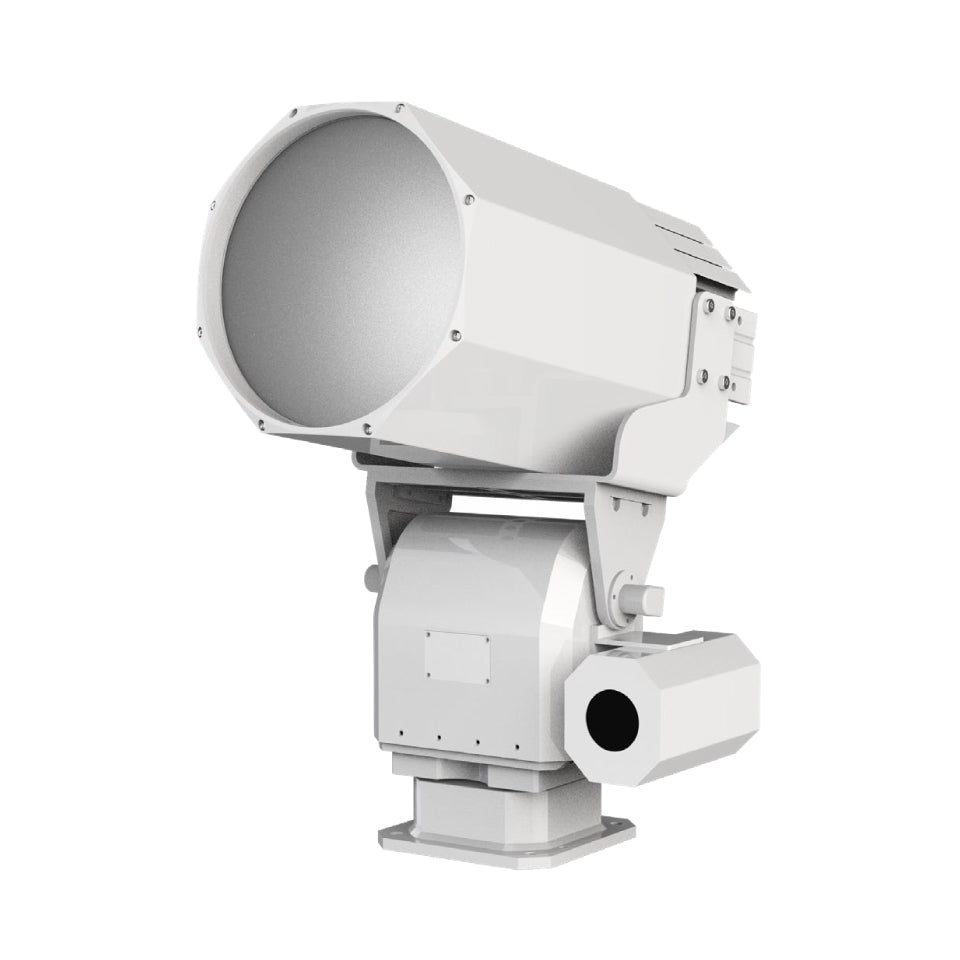

Camera LED Marine Searchlights

$12,144.00 USD

Sale Sold out

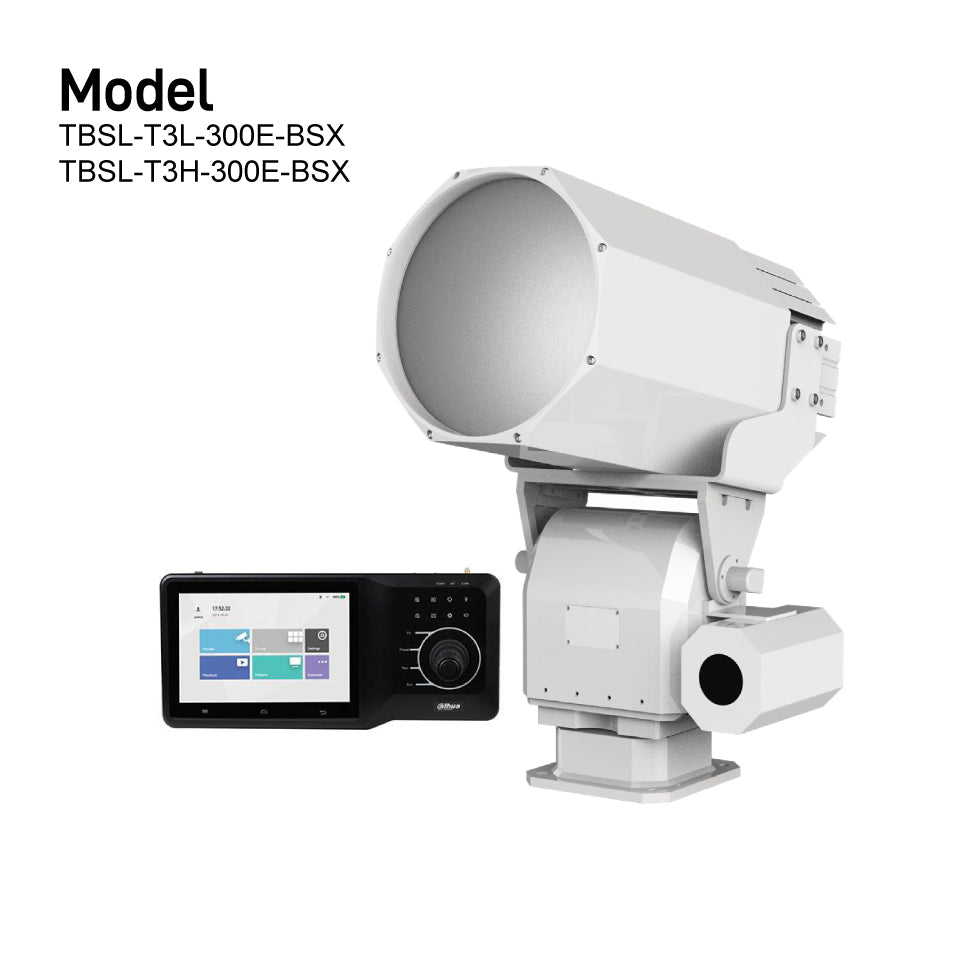

Model TBSL-T3L-300EBS TBSL-T3H-300EBS

Quantity

🚚 Shipping: Usually ready to ship in 5+ days

Features:

Protection class: IP66
Power: 240W available
Irradiation distance: T3L≥1000M(1LUX), T3H≥2000M(1LUX)
Beam angle: 3.5-4.5° / 1.8-2.5°
Slip-rings provide continuous 360° horizontal rotation with no stop points
Auto-return to home position
Auto-scan with user programmability
Advanced proportional-speed control
Approved for temperatures down to -40°C and up to +55°C
Materials: marine-grade aluminum and stainless steel with salt-resistant powder coat finish
Lower power consumption: LEDs consume 75% or more less power than Halogen lamps
Longer life: LEDs last tens of thousands of hours compared to approximately 1000 to 2000 hours, depending on the Halogen lamp. This reduces lamp replacement costs, increases reliability

Description

The TUBU LED Marine Searchlights are engineered for demanding applications across national defense, marine operations, military missions, water conservation, offshore oil fields, wharfs, large warships, and maritime search-and-rescue. Built with IP66 protection, 240W output, and beam angle options of 3.5–4.5° or 1.8–2.5°, they deliver long-range illumination with a maximum distance of 2000 and 4000 meters for superior visibility in critical environments.

Designed with continuous 360° horizontal rotation via slip-ring technology, user-programmable auto-scan, auto-return positioning, and advanced proportional-speed control, these searchlights offer precise and responsive operation.

Their marine-grade aluminum and stainless-steel construction, with a salt-resistant powder-coat finish, ensures durability in harsh, corrosive ocean environments. Optional cloud-control capability provides 200 preset positions, ±0.1° positioning accuracy, support for ONVIF/GB28181 protocols, and RS-485 communication for seamless integration into modern monitoring systems.

With low power consumption, long LED lifespan over 50,000 hours, and superior reliability compared to halogen lights, TUBU searchlights deliver consistent, mission-ready performance for maritime and defense professionals.

Tech Specs

Model		TBSL-T3L-240E-BSX	TBSL-T3H-240E-BSX
Light Information	Light Source	LED	LED
	Power Consumption	240W	240W
	Color Temperature	4500K	4500K
	Input Voltage	AC220V (50/60Hz)
	Working Temperature	-40°C ~ +55°C
	IP Rating	IP66
	Lifespan	>50,000 hours
	Beam Angle	3.5-4.5°	1.8-2.5°

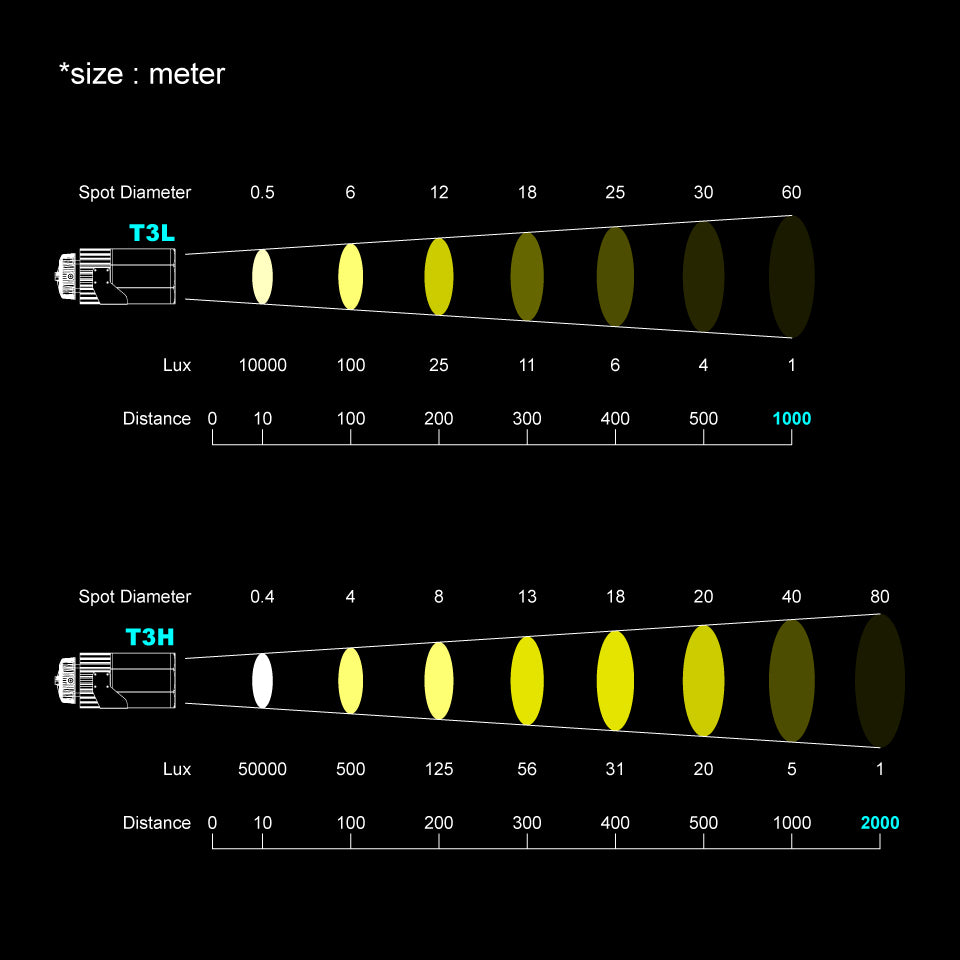

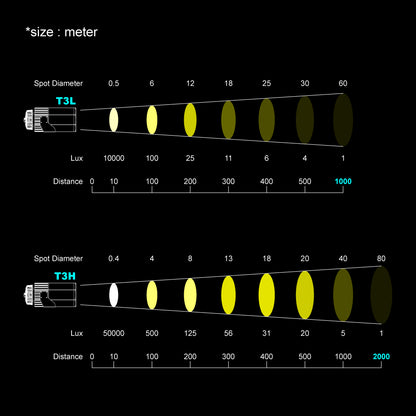

	Beam Distance	≥1000m(1LUX), ≥2000m(0.25LUX)	≥2000m(1LUX), ≥4000m(0.25LUX)
	Housing Material	1070 Pure aluminum cold forging, with salt-resistant, scratch-resistant white powder coat finish
	Packing Size (mm)	600500800mm(wooden box package)
	Weight	40Kg
Cloud Platform (Optional)	Adjustable Speed	Horizontal: 1°～20°/S, vertical 1°～5°/S
	Adjustable Angle	Horizontal: 0～360°, vertical +35°～-35°, or customizable
	Preset Position	200pcs
	Repeated Positioning Accuracy	±0.1°
	Communication Protocol	Protocols:ONVIF, GB/T28181 compliance
	Communication Baud Bate	2400/4800/9600/19200bps(optional)
	Communication Interface	RS485
	Power	60W

Ultra-Long Illumination Range for Critical Missions

With an irradiation distance of ≥1000 m at 1 lux and ≥2000 m at 1 lux, the TUBU Camera LED Marine Searchlight far outperforms typical marine lighting. TUBU Camera LED Marine Searchlight maintains high visibility at extreme distances—crucial for national defense, search and rescue, offshore platforms, and large-ship navigation.

T3H Camera LED marine searchlights vs. SEEMATZ Searchlights

Compared with the TUBU camera-integrated LED marine searchlight, the SEEMATZ searchlight features a noticeably larger housing and uses a glass lens combined with a deep reflector structure, following a traditional halogen-style design. It is mounted on a heavy-duty rotating base with reinforced metal brackets to ensure stability in demanding maritime environments.

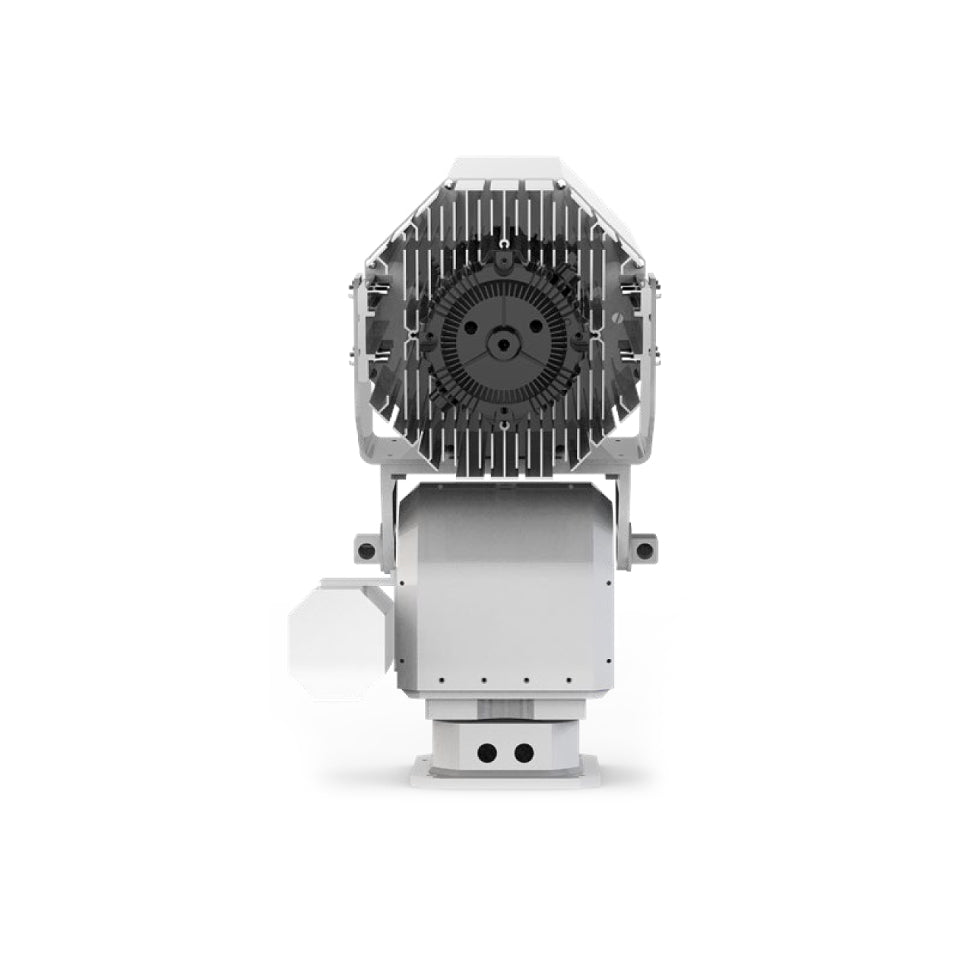

In contrast, the TUBU camera-integrated LED marine searchlight is more compact and modern in appearance, featuring a streamlined body with ventilation slots. It is built from cold-forged 1070 pure aluminum with a corrosion-resistant, scratch-proof white powder-coated finish. The unit integrates a high-definition camera module, offering higher protection levels, a full 360° viewing capability with strong image penetration, and advanced smart features.

Video comparisons of the two searchlights show clear performance differences:

The SEEMATZ searchlight (left side) produces a beam that scatters quickly over long distances, causing rapid brightness loss and reduced clarity for far-range targets. This limits its effectiveness during nighttime patrols, long-distance navigation, and search operations.

The TUBU T3H camera-integrated LED marine searchlight delivers a highly focused long-range beam that maintains strong brightness and target clarity even at distances up to 2 km. Its superior penetrating power allows the beam to cut through darkness, fog, and atmospheric interference while retaining sharp, clean illumination.

Overall, compared with the SEEMATZ unit, the TUBU LED searchlight is smaller, lighter, more energy-efficient, and provides significantly better illumination quality and long-range identification performance. This enables vessels to detect distant structures, hazards, and potential risks more quickly and accurately, enhancing situational awareness and overall navigational safety.
