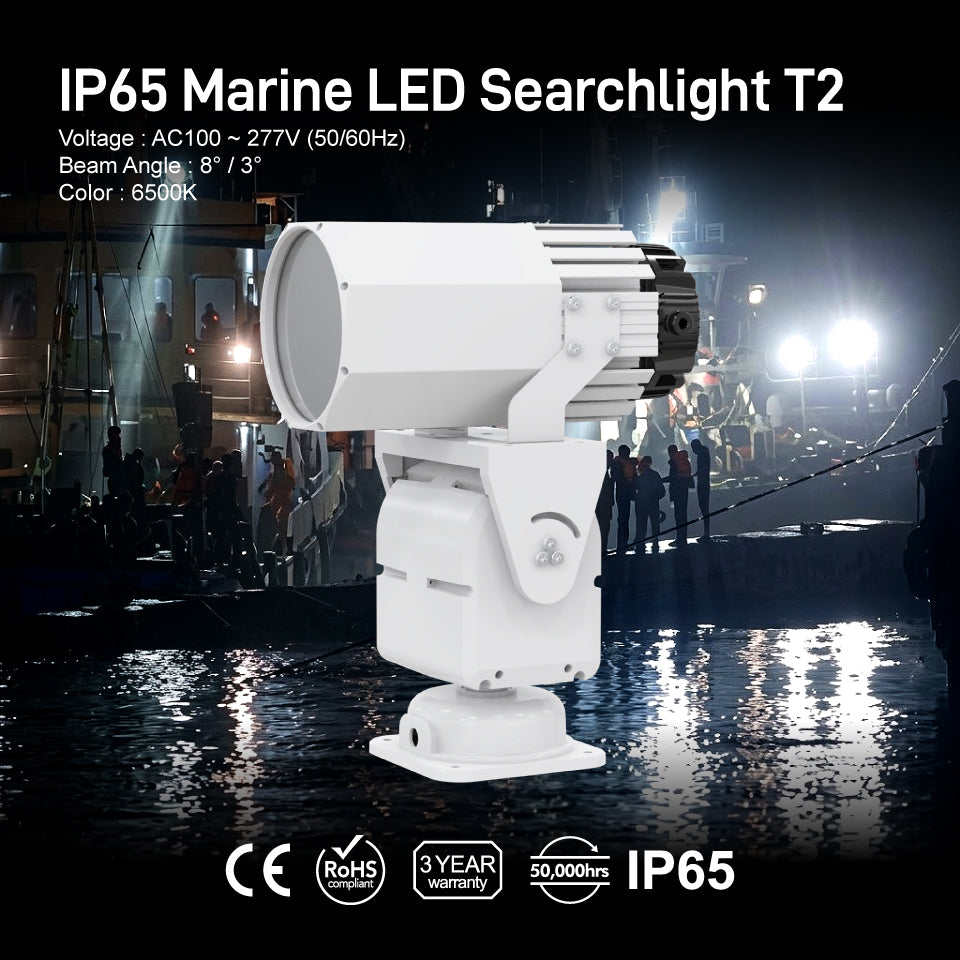

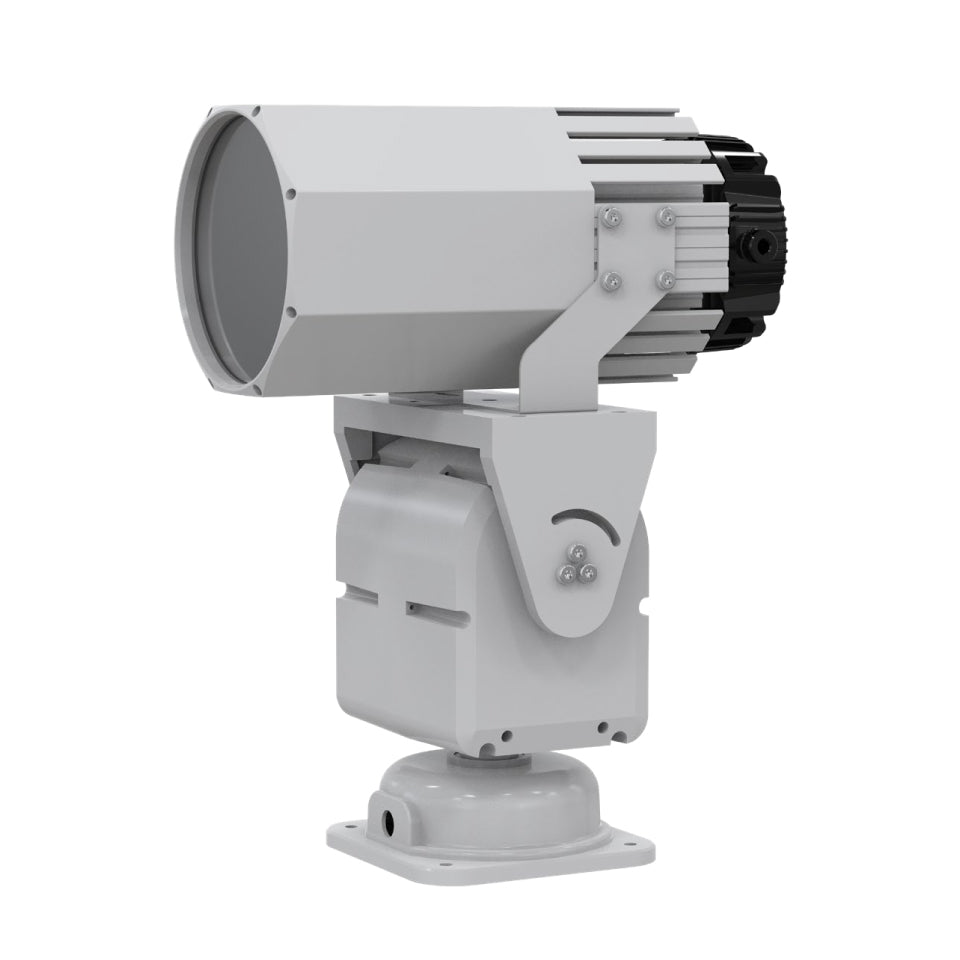

Marine LED Searchlight

Protection class: IP65

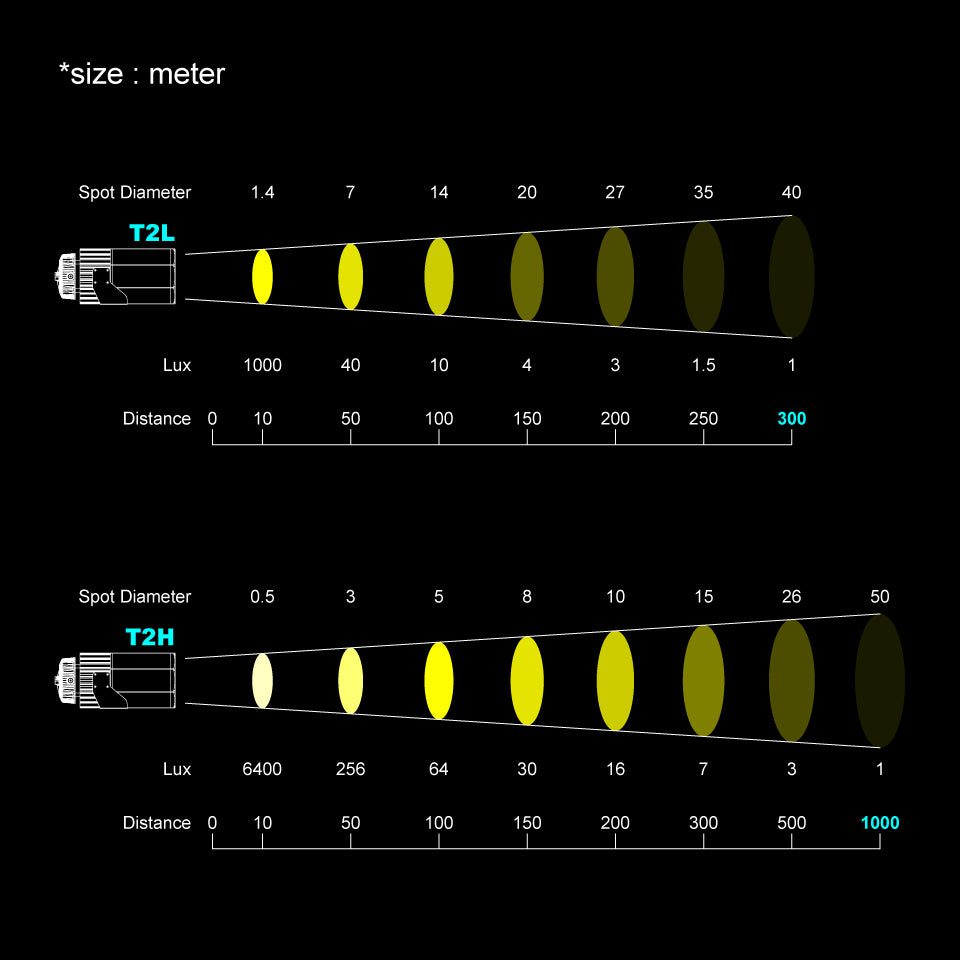

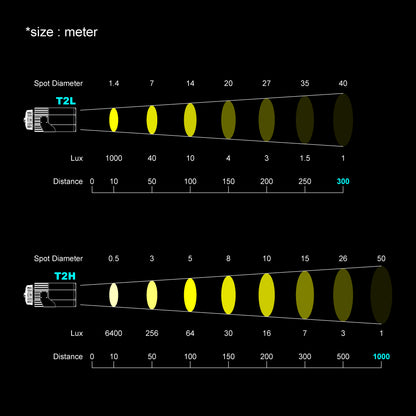

Irradiation distance: T2L ≥300M (1LUX),T2H ≥1000M (1LUX)
Beam angle: 8°/3°
360-degree rotation, but not continuous (continuous rotation can be customized)
Advanced proportional-speed control
Approved for temperatures down to -25°C and up to +55°C
Materials: marine grade aluminum and stainless steel with salt-resistant powder coat finish
Lower power consumption: LED's consume 75% or more less power than Halogen lamps
Longer life: LED's last tens-of-thousands of hours compared to approximately 1000 to 2000 hours depending upon the Halogen lamp. This reduces lamp replacement costs, increases reliability
3-year warranty (3-year warranty for light, 1-year warranty for adjustable pedestal base)

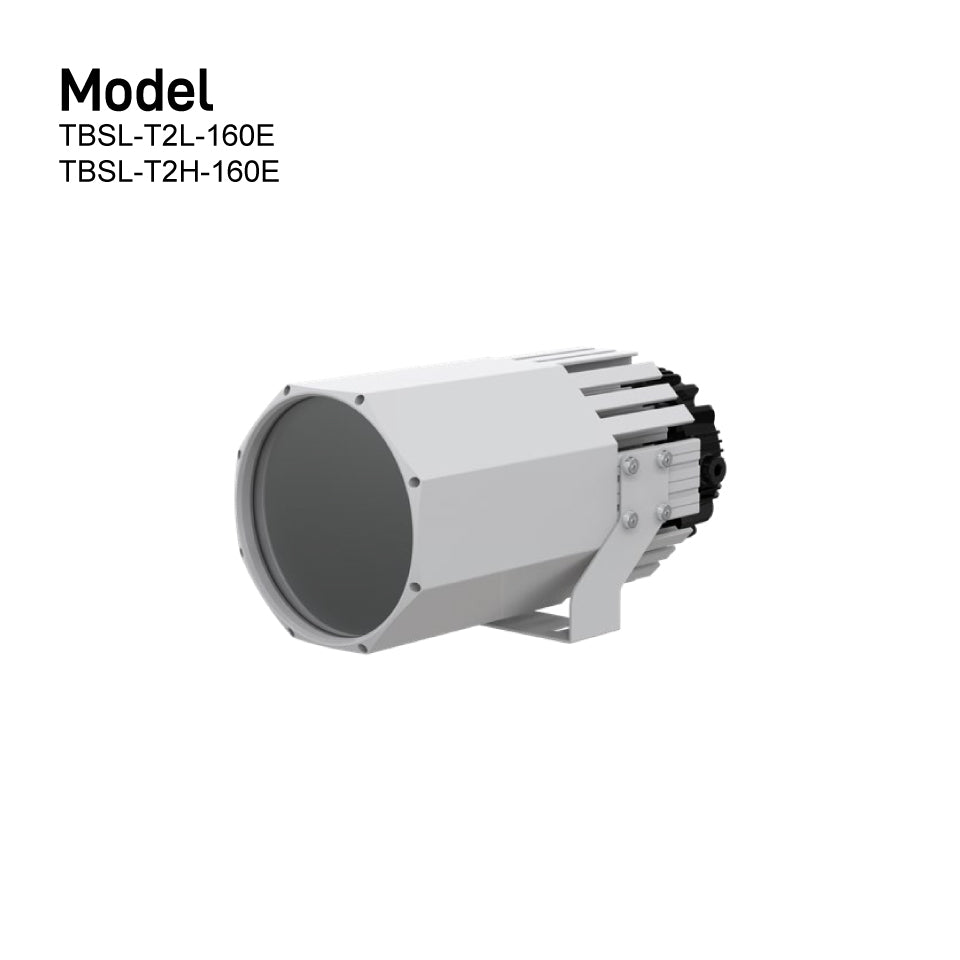

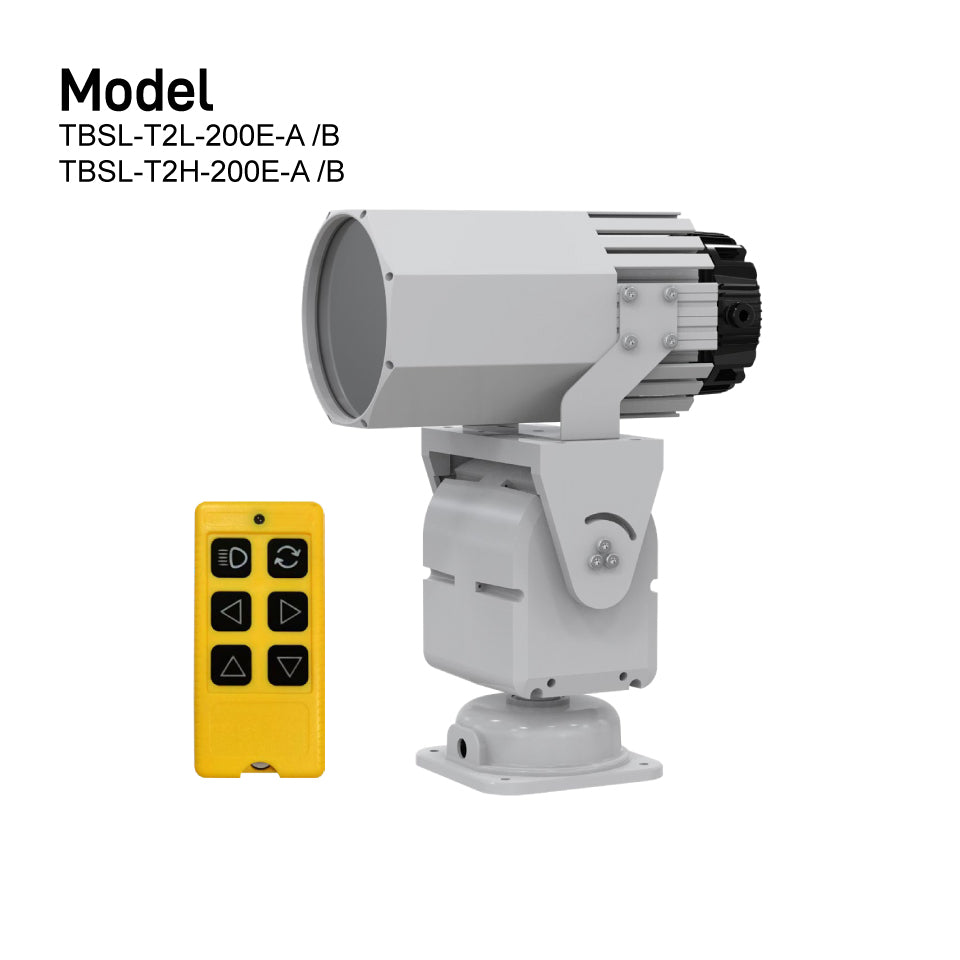

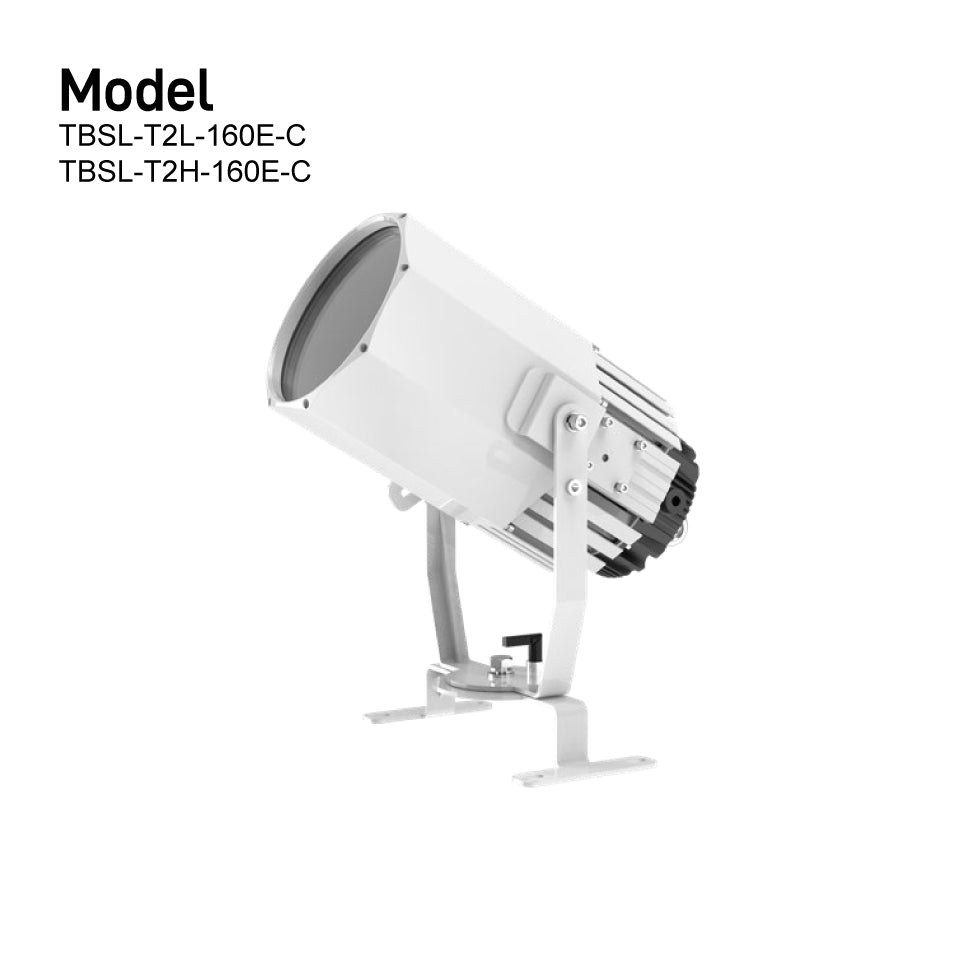

Category	Specification	TBSL-T2L/H-160E	TBSL-T2L/H-160E-C	TBSL-T2L/H-200E-A /B
Light Information	Light Source	LED	LED	LED
	Power Consumption	160W	160W	200W
	Color Temperature	6500K	6500K	6500K
	Input Voltage	AC100 ~ 277V (50/60Hz) / AC220~240V(50/60Hz)	AC100 ~ 277V (50/60Hz) / AC220~240V(50/60Hz)	AC100 ~ 277V (50/60Hz) / AC220~240V(50/60Hz)
	Working Temperature	-25 °C ~ +55°C	-25 °C ~ +55°C	-25 °C ~ +55°C
	IP Rating	IP66	IP66	IP65
	Lifespan	>50,000 hours	>50,000 hours	>50,000 hours
	Beam Angle	8° / 3°	8° / 3°	8° / 3°
	Beam Distance	≥300m (1LUX) / ≥800m(1LUX)	≥300m (1LUX) / ≥800m(1LUX)	≥300m (1LUX) / ≥800m(1LUX)
	Weight	6Kg	12Kg	17Kg
	Material	1060AL	1060AL	1060AL
	Packing Size (mm)	450250250mm	600500400mm	600500400mm
	Quantity/carton	1PCS	1PCS	1PCS
	Product Configuration	Bare light	With manual bracket	With adjustable pedestal base
Cloud Platform (Optional)	Adjustable Speed	/	/	Horizontal: 9°/S, Vertical: 6°/S
	Adjustable Angle	/	/	Horizontal: 0~360°(Non-continuous rotation), Vertical: +30°~-30°
	Repeated Positioning Accuracy	/	/	±1°
