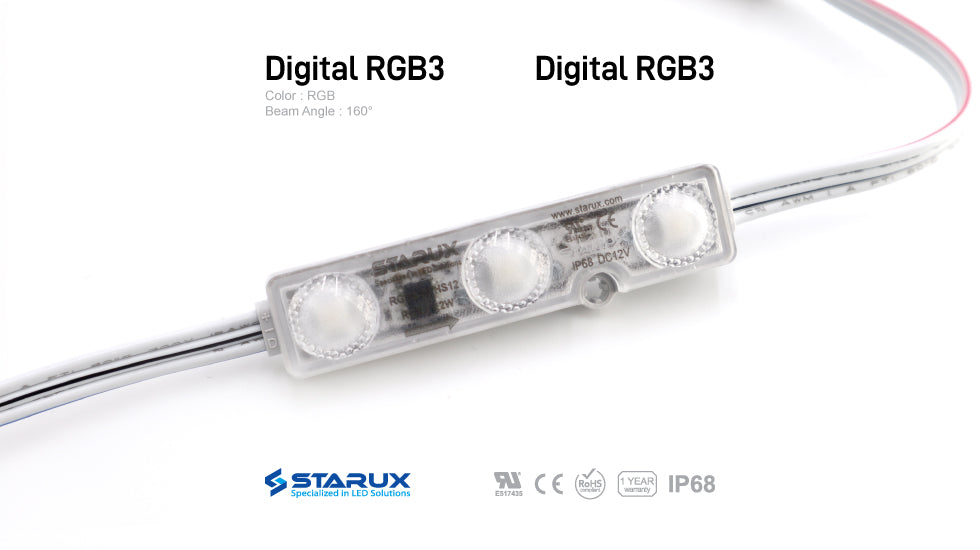

Starux, Channel LED Module, Digital RGB3, RGB SPI Digital Control Change Color, 50 pcs, (25ft)
Starux, Channel LED Module, Digital RGB3, RGB SPI Digital Control Change Color, 50 pcs, (25ft)
Couldn't load pickup availability
🚚 Shipping: Usually ready to ship in 5+ days
- Integrated 3-in-1 RGB LEDs
- SPI digital control
- Single-wire return-to-zero (RZ) protocol with universal serial cascading
- Compatible with most industry-standard controllers for versatile lighting effects
- Supports long-distance signal transmission with built-in auto-reshaping technology, ensuring stable communication without signal distortion or attenuation
APPLICATIONS
Suitable for outdoor architectural lighting applications, including large-scale logos, building outlines, theme parks, hotels, billboards, facades, stages, and entertainment venues. Suitable for outdoor architectural lighting applications, including large-scale logos, building outlines, theme parks, hotels, billboards, facades, stages, and entertainment venues.
Specifications
• Model : RGB3-SPHS12, RGB3-SPHS72
• Colors : RGB SPI digital control
• Lumens : 27 lm/mod, 23 lm/mod
• Efficacy : RGB 32 lm/W
• Power : 1.2 W, 0.72 W
• Input Voltage : 12V DC
• Beam Angle : 160°
• Module Spacing : 2 pcs/ft
• Dimensions : 2.76” x 0.67” x 0.4”
• Max in series : 50 Mods
• Operating Temp : -4°F ~ 140°F / -20°C ~ 60°C
• Life Time : 1 year
• IP Rating : IP68 Waterproof
Product details
IC : UCS2903 (Compatible with WS2811)
Pixel : 1 pixel per module
Cutting Point : Individually cuttable at each module
Ports : Dual-end ribbon cable, 143 mm length
Arrow : Indicates signal flow direction from the controller to the module
